COLUMBIA UNIVERSITY PLAZA - NEW YORK

We developed a digital twin from a point cloud scan of the Columbia University Plaza Square in New York. The scope was to accurately model the topography and landscape, providing a precise Revit model that could serve as a foundation for future planning, analysis, and design integration

The model included topography and the exterior facade of the adjacent buildings.

project type

Educational

location

New York, USA

area

7460 m² / 80,300 ft²

[ Project Stages ]

Scan

imput

Model

Delivery

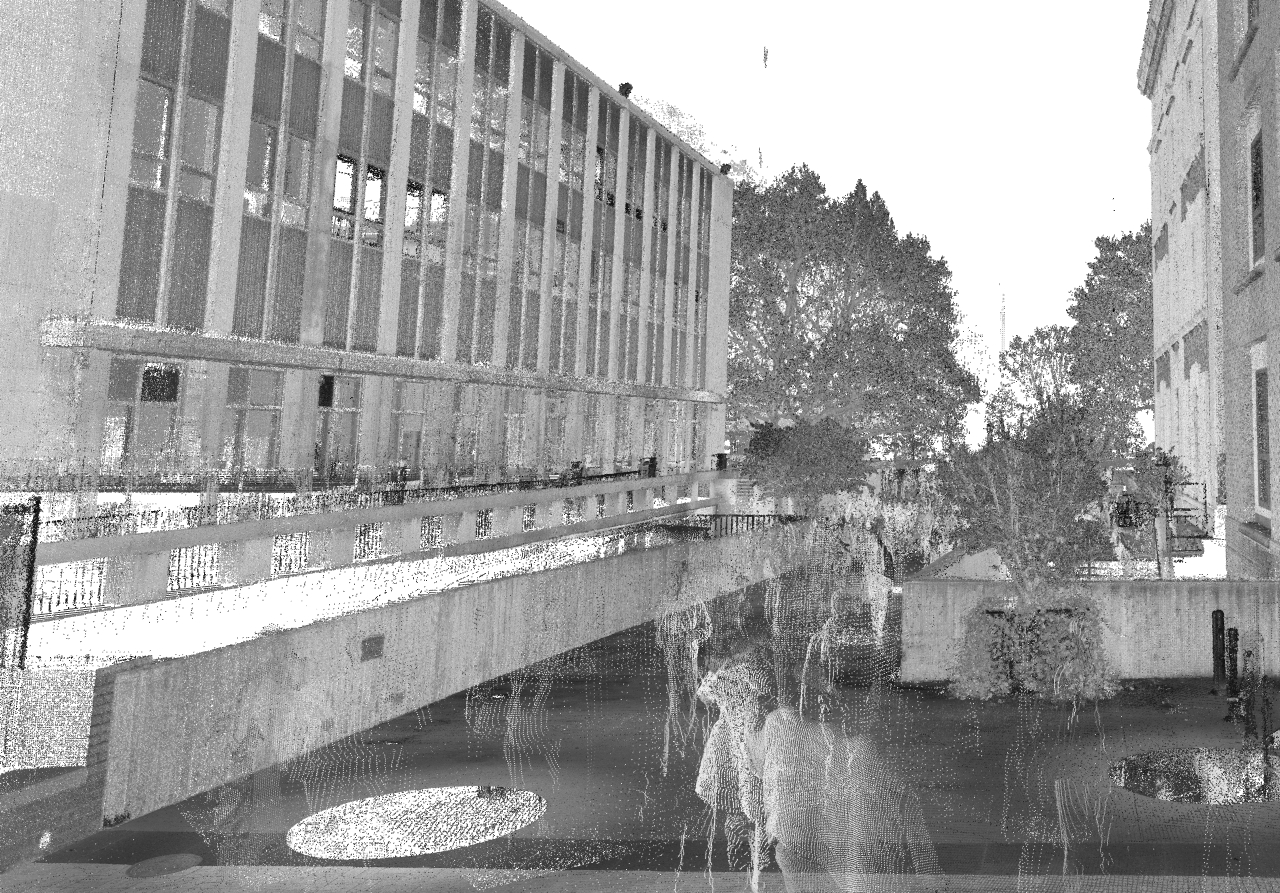

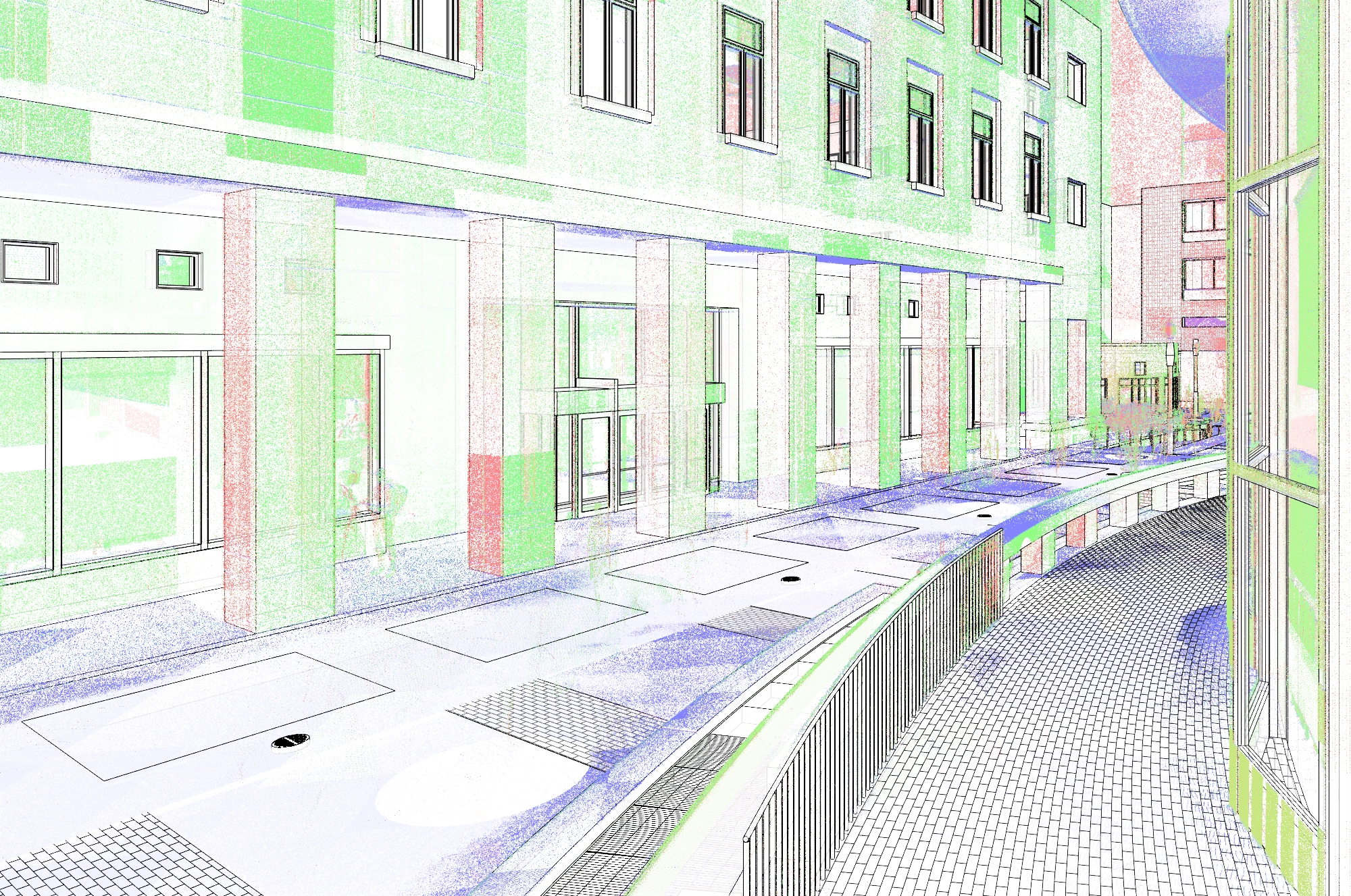

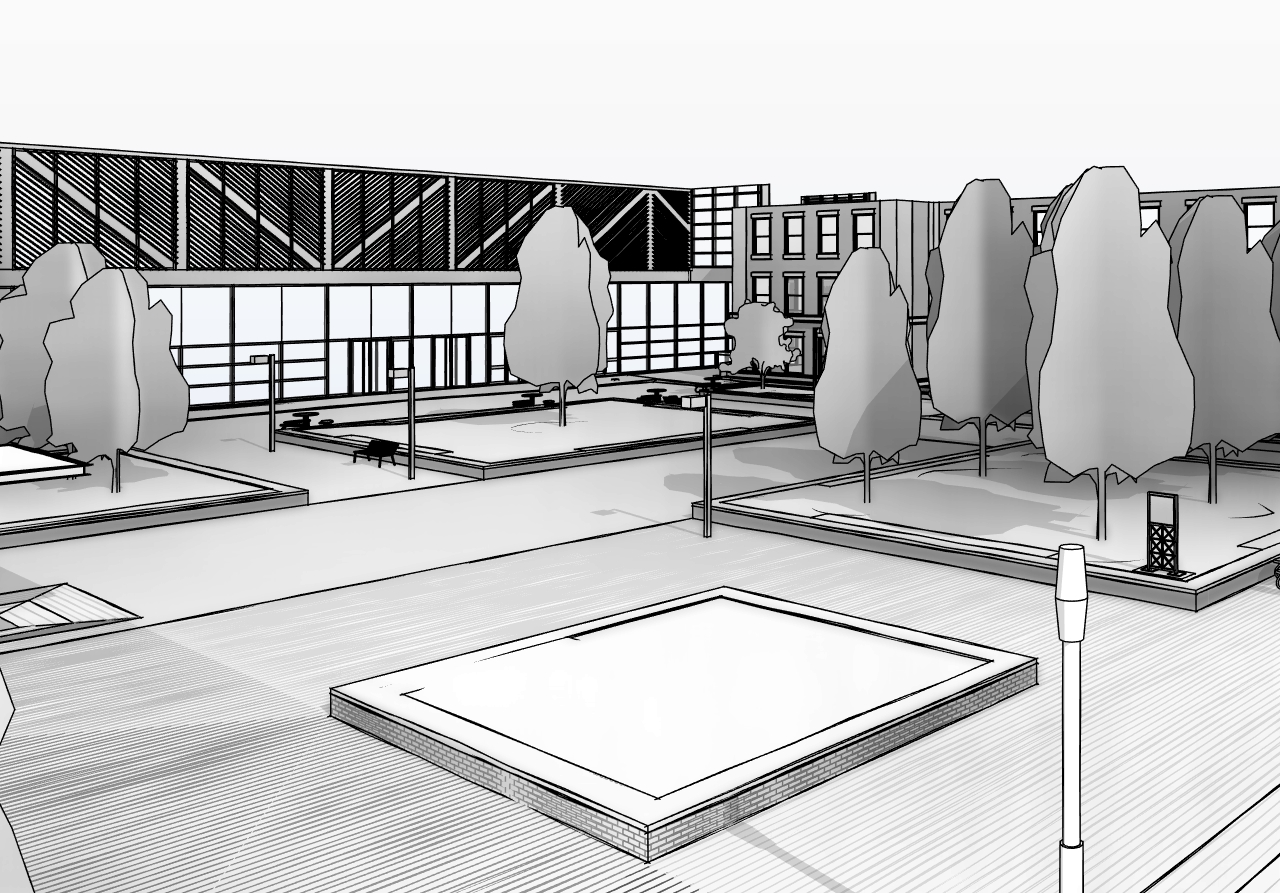

[ Point Cloud vs Model ]

[ Challenges ]

Recreating Custom Curtain Wall

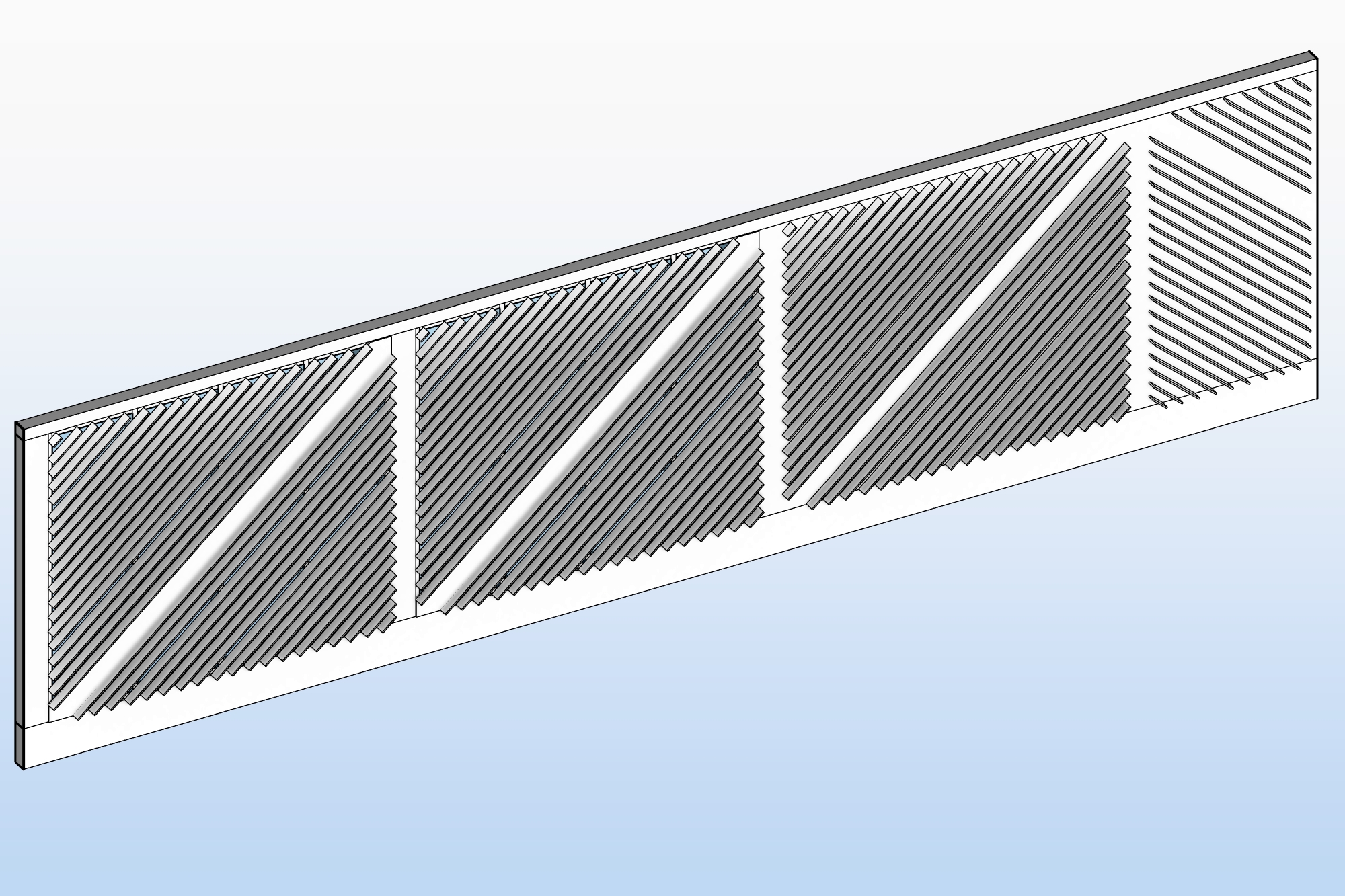

Another important task was modeling the custom curtain wall paneling. Some panels had angled layouts and unique dimensions, so we built them carefully in Revit to match the design and ensure the model stayed accurate for documentation and planning

Street`s Lampost

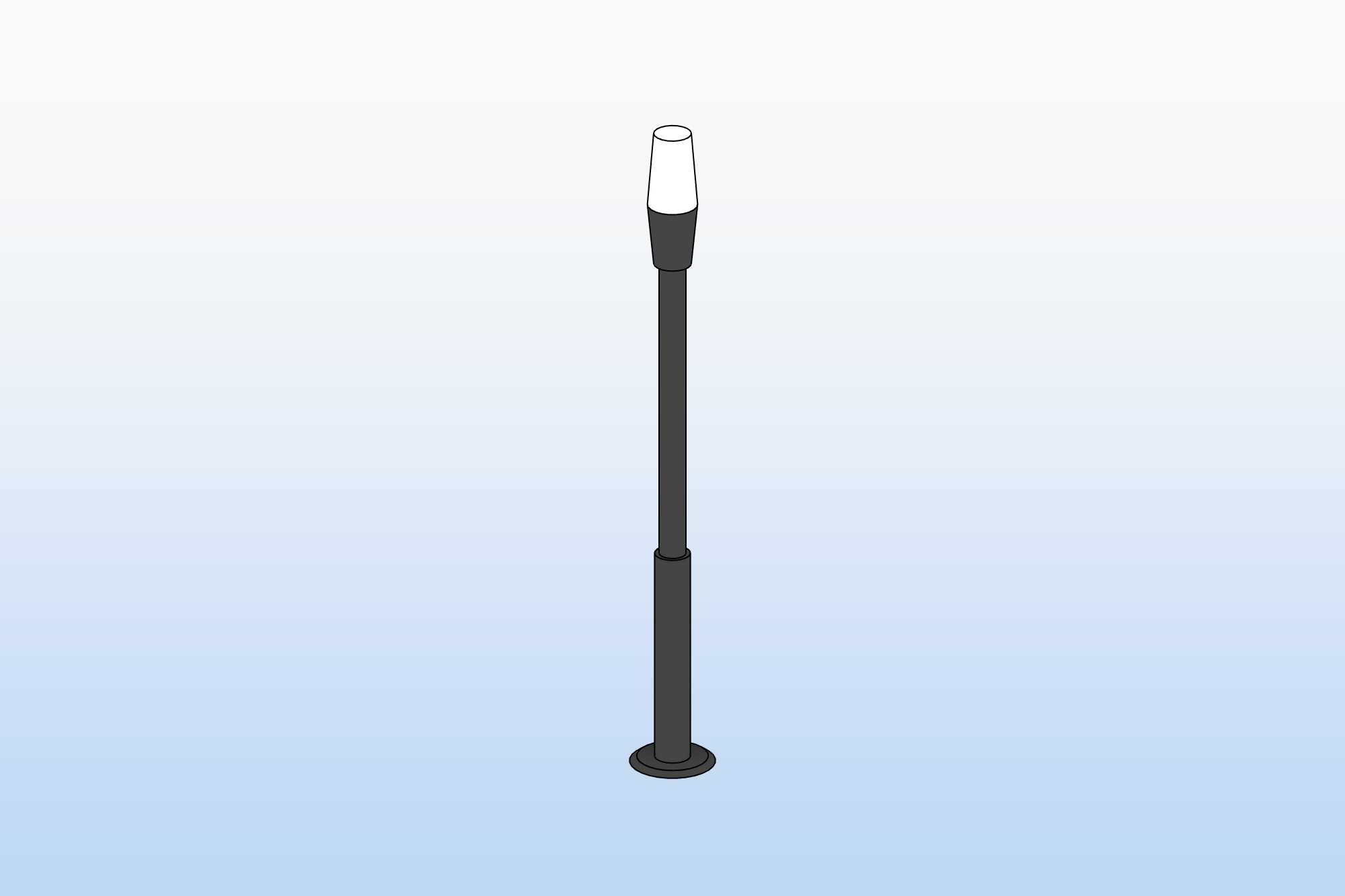

We also created a custom Revit family for the street's lamppost, accurately replicating its design and proportions to keep the model consistent with the site conditions.

[ Results ]

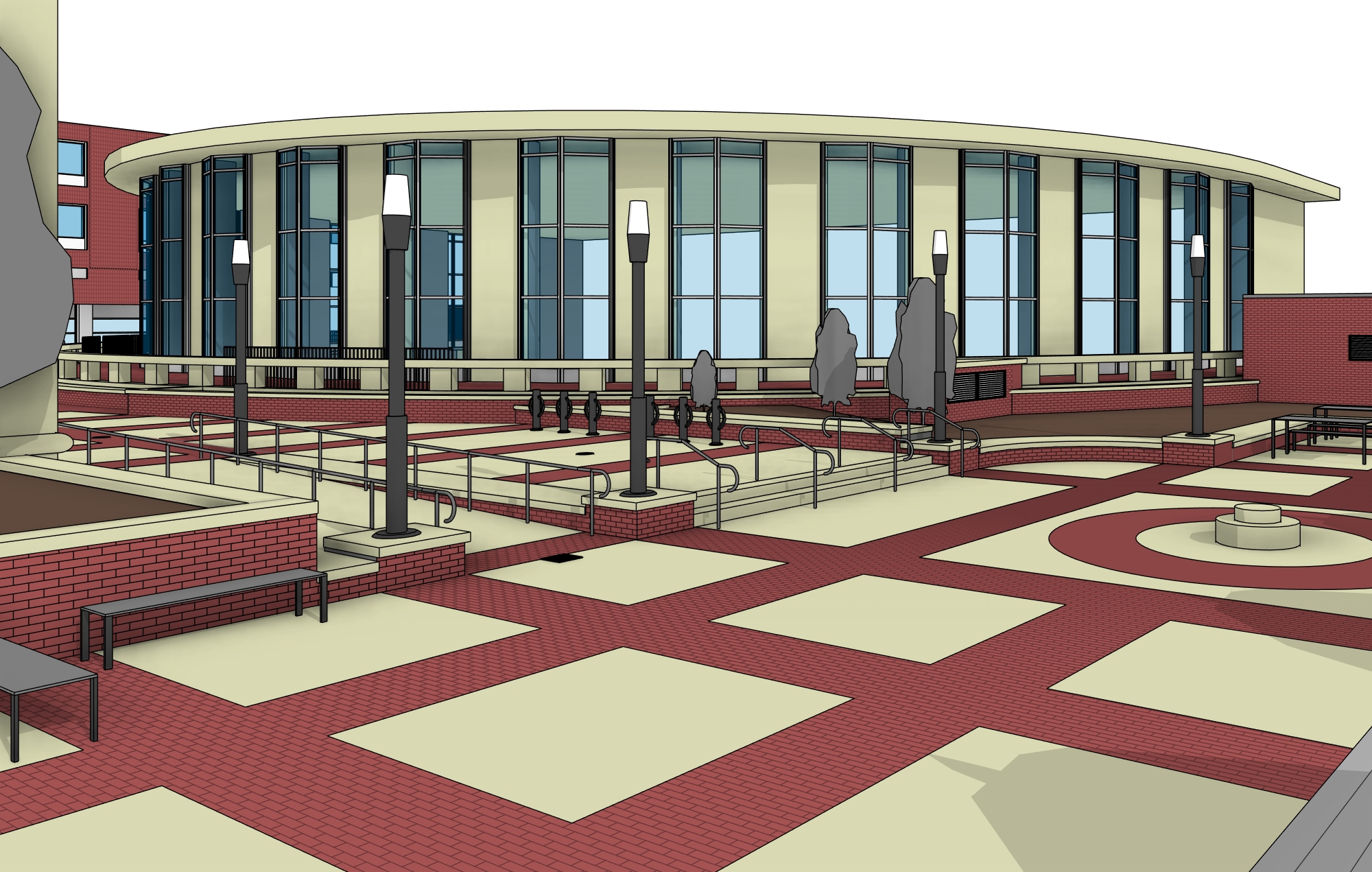

Digital twins help clients visualize their projects, track existing conditions, explore design options, and improve planning, coordination, and maintenance processes

BIM Model

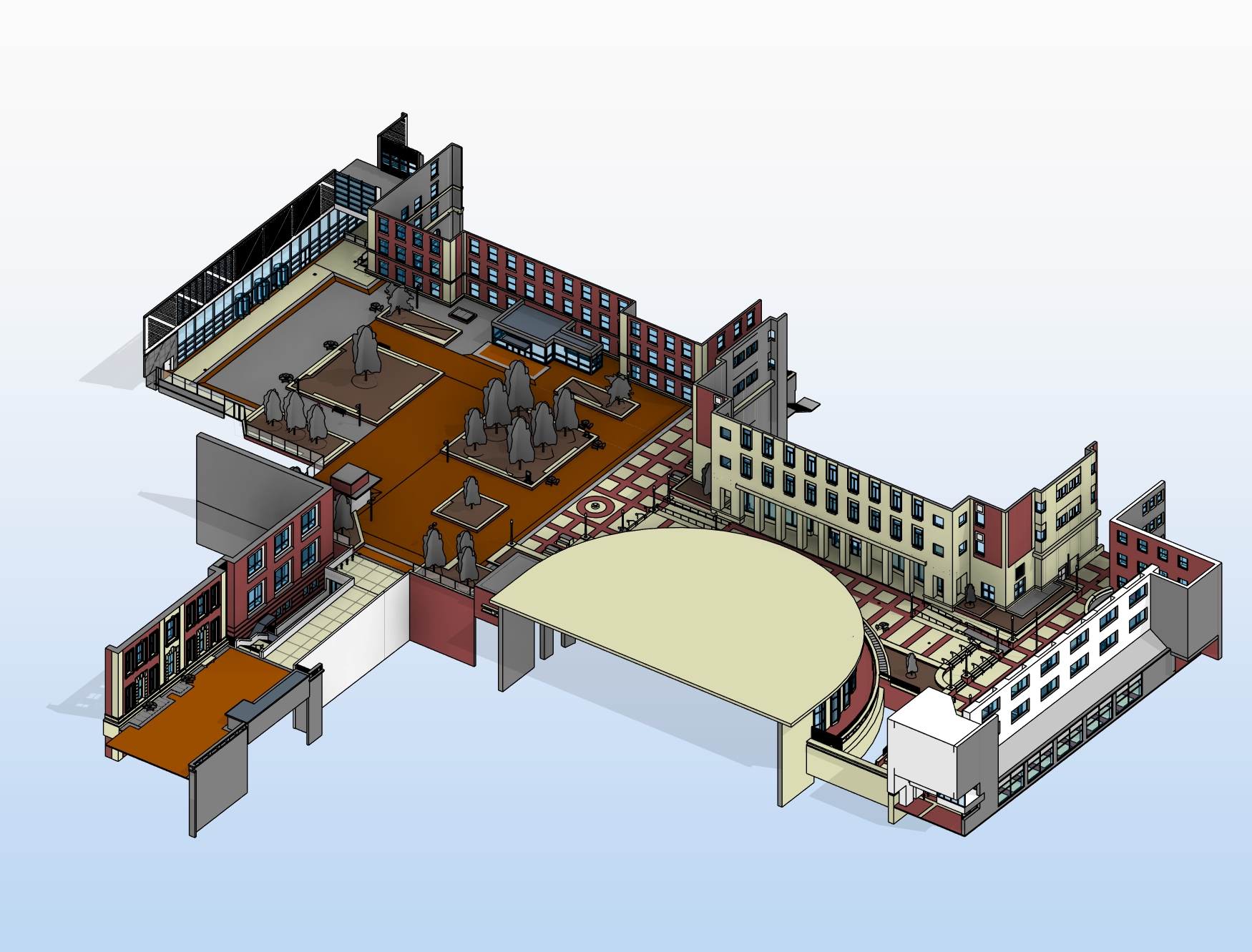

A complete virtual version of the project, ready for review and updates.
